Anatomy of LoadX

LoadX sails are built like a modern suspension bridge: A roadway (The Base) supported by cables (The Fibers).

The LoadX Gantry System lays fibers along precise load paths, eliminating structural reliance on seams.

The 3-Layer Construction

1. The Base (The Skin)

Function: Aerodynamic Shape & Air Barrier. We use a specialized, high-quality cross-cut laminate. This base is shaped into the perfect 3D airfoil before any fiber is applied.

• Note: Unlike radial sails, this base takes secondary loads only.

2. The Fibers (The Skeleton)

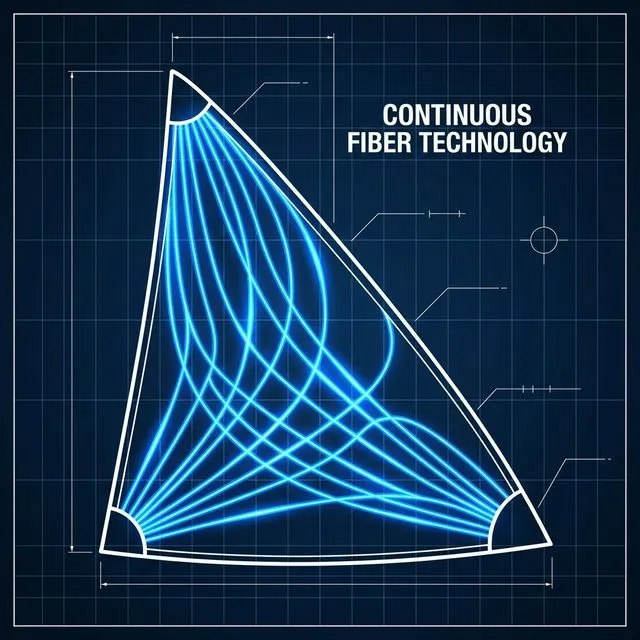

Function: Primary Load Handling. Dry bundles of continuous fiber (Carbon or PE) are laid robotically from corner to corner, following the specific load path of the sail.

• Zero Crimp: Because they are on the surface, the fibers are perfectly straight for maximum stiffness.
• Seam Crossing: The fibers bridge across the seams of the base, locking the shape permanently.

3. The Protective Layer (The Shield)

Function: UV & Chafe Protection. The fibers are covered or encapsulated to protect them from the sun, winches, and rigging.

(Diagram: Exploded view showing Base Layer, Fiber paths, and Protective Coating)

---

Infrastructure for the Modern Loft

For the independent sailmaker, LoadX isn’t just a product—it’s your backend infrastructure.

In the era of digital manufacturing, your ability to compete doesn’t depend on how fast you can sew; it depends on the technology stack you can access. LoadX provides you with the same industrial-grade continuous fiber manufacturing capabilities used by the world’s largest syndicates, without the multimillion-dollar capital investment.

We are your Digital Super-Factory. You design it; we build the engine.
